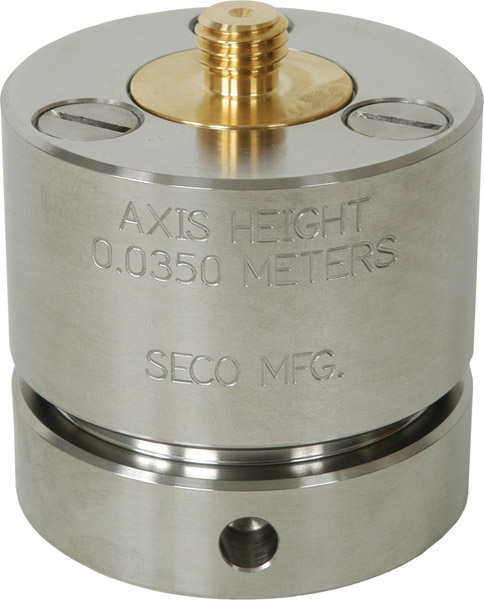

Adjustable Tilt Monument Mounts for Male 5/8 x 11 TPI

PN: 2072-33
Shipped from:

Details



  • Adjustable Tilt Monument Mounts Male 5/8 x 11 TPI



  • The adapter has 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)



  • Includes a removable brass 5/8 x 11 male stud that is adjustable in azimuth and held in location by two set screws



  • The adapters are leveled by three screws with a tilt range +/- 7°



  • The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm)



  • The height below the brass 5/8 stud to the shoulder is 0.463 inches (1.18 cm)



  • The axis height is engraved on the outside of the monuments



  • Weighs 6.32 lb (2.87 kg)
